The filled contour graph follows the exact same principles as for the non filled graph described above. The core difference is that a filled graph is created as an instance of class FilledContourPlot, i.e.

1
2
3

<?php
$filledContour = new FilledContourPlot($data);
?>

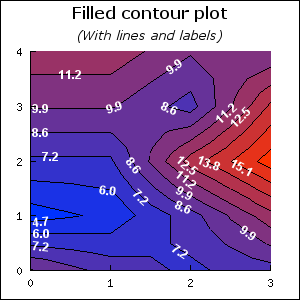

Contour lines are controlled with the method

In order to have the contour filled the method

should be called.

Since there are n isobar lines and there needs to be n+1 colors to fill the graph there is a choice of what side should the color for isobar line n fill. The area above or the area below the isobar. In this library we use the convention that the color for isobar line n is used to fill the area up to the next highest isobar n+1.

If the colors are specified manually it is important that one more color than the number of isobar lines are specified. The convention is such that the color specified in the first position (position = 0 ) in the color array is used to fill the area below the lowest specified isobar.

An example will make this clear.

The graph below only uses three isobar lines (to keep things simple) which means that we need four colors. To create such a graph we use the lines

1
2
3
4
5
6
7
8
9
10
11
12

<?php
$data = array( ... );

$isobar_colors = array('lightgray','teal:1.3','orange','red');

// Create a new contour graph with three isobar lines
$cp = new ContourPlot($data,3);

// Specify the colors manually
$cp->SetIsobarColors($isobar_colors);

?>

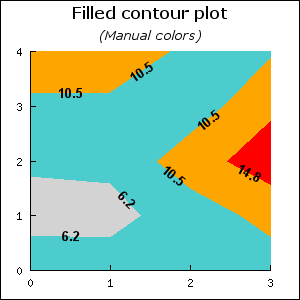

Figure 23.3. Manual colors for contour (contour2_ex3.php)

as can be seen from the labels in the graph the algorithm has resulted in three isobar lines (as specified) at values 6.2, 10.5 and 14.8. The first color "gray" is used to fill the area below the smallest isobar (6.2).

It should be noted that by specifying SetFilled(false) a non filled contour graph can be created. However, the visual appearance compared with the class ContourPlot will be slightly different. The reason is that the filled contour plot class uses an adaptive algorithm that gives better fidelity than the simpler non adaptive algorithm used in the standard (non-filled) contour plot class. The contour corresponds to creating a contour with the plain contour plot algorithm (class ContourPlot) using an interpolation factor of ~3-4.

In order to make it easier to follow the contour labels can be added inside the contour. The labels are placed using a heuristic algorithm that tries to place enough labels to make the plot easy to read but not as many labels as to make it crowded.

There are two main characteristic of the labels that can be controlled.

To enable or disable the display of the labels as well as determining if the label should follow the gradient or not the method

is used. The two examples below show two variants of the same contour where the left graph have labels which follows the gradient and the right graph have labels that are always oriented horizontally.

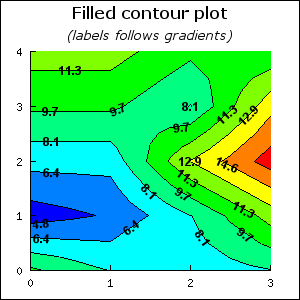

Figure 23.4. Labels that follows the gradients (contour2_ex4.php)

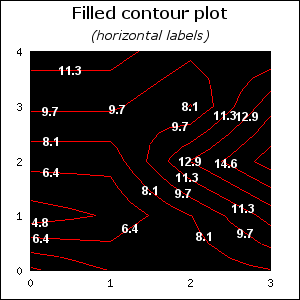

Figure 23.5. Labels that are always horizontal. In this example we have also shown how to change the colors. (contour2_ex5.php)

In order to fully understand the effect of selecting which adaptive method to use it is first necessary to understand some background on how contours are created algorithmically.

Determining general contours for a function of two independent variables is equivalent to the problem of finding the equivalence class of all coordinate pairs (x,y) for which for C=f(x,y) which in general is a non-linear problem. This is an example of a problem that is computational very expensive to mathematically solve correct but quite tractable if we view a sampled version of the function. This means that we in general do not have access to f(x,y) instead we only know of its values at a number of grid points. This is also the cause of visually different contour plots for the same input data.

The difference lay in the core problem that in order to draw a continues contour we need to interpolate the unknown values in between the known sample points. This is therefore a degree of freedom where the actual choice of how we do the interpolation will cause the contour to be visually different depending on our choice.

While it would take to far in this manual to describe the full adaptive algorithm in all details we will show the different principles that underlying the two methods hat the user can select between.

In order to determine the isobars the given data points are considered to be vertices in a grid where each vertice is connected with an edge. There are two basic ways to connect the points with edges; rectangular and triangular. In the first way four points are connected to form a square and in the second way three point are connected to form a triangle. The so created square or triangles will be referred to as a submesh consisting of four and three sides respectively.

To determine the isobars each submesh is recursively divided until each side is small enough to only have one crossing isobar. The exact position of the crossing is determined by linear interpolation between the two corresponding vertices.

The figures below shows the sequences for the triangle recursive division. The recursion continues until each edge has exactly one crossing of an isobar.

Figure 23.6. Triangulation step 0

Figure 23.7. Triangulation step 1

Figure 23.8. Triangulation step 2

In the same way the sequence of figures below shows the principle for the quadratic recursive subdivsion of the mesh for first three steps.

Figure 23.9. "Rectangularization" step 0

Figure 23.10. "Rectangularization" step 1

Figure 23.11. "Rectangularization" step 2

Needless to say these two variants give slightly different visual appearance of the resulting contour plot and neither of the two method can be considered "the right method". Triangularization tends to work better (and faster) for high frequency contour plots and gives a more "edgy" result. The quadratic subdivision might require more recursive steps for high frequency contours but in general gives a smoother look of the resulting contour.

By default the library uses a rectangular mesh division and that is the method that has been used in all the previous examples. As an illustration the effect of the method have the two figures below shows the same data as we have used in the previous figures to display a contour plot with 7 isobars. The left figures uses a rectangular division (the default) and the right figure uses a triangular division.

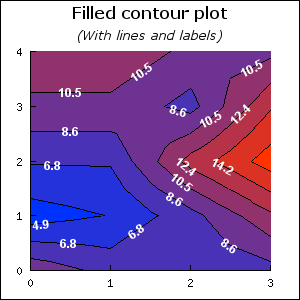

Figure 23.12. 7 Isobars, "rect" method (contour2_ex6.php)

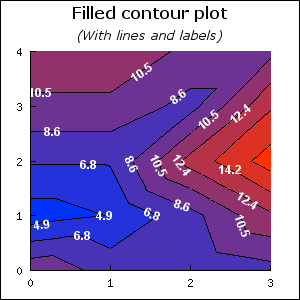

Figure 23.13. 7 Isobars, "tri" method (contour2_ex7.php)

As can be seen in this case the triangular method favour elongated contours from southwest to northeast while the rectangular method favours circular contours.

The way to choose what method to use is by the method

Tip

It is possible to show the triangulation used by calling the method FilledContourPlot::ShowTriangulation($aFlg). In the two figures below the triangulation for the "rect" and "tri" method in the previous examples are shown.

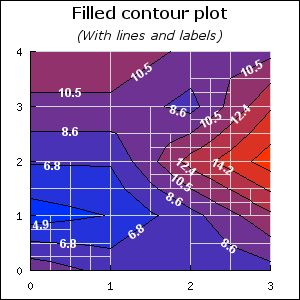

Figure 23.14. Rectangular sub-division

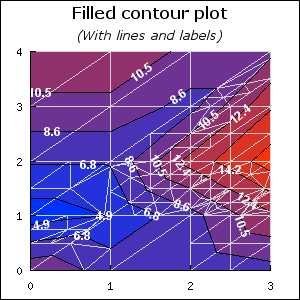

Figure 23.15. Triangular sub-division
